| Lugar de origen: | CHINA |
|---|---|
| Nombre de la marca: | YIGAN |
| Certificación: | CE |
| Número de modelo: | GHL |
| Cantidad de orden mínima: | 1 sistema |
| Precio: | negotiation |
| Detalles de empaquetado: | Embalado en película en primer lugar, y después reforzado con la caja de madera para el embalaje ext |
| Tiempo de entrega: | 20 días laborables después de recibieron su pago |
| Condiciones de pago: | T/T o LC a primera vista |
| Capacidad de la fuente: | 20 sistemas por mes |
| Nombre de producto: | granulador de mezcla mojado | Uso: | Farmacéutico |
|---|---|---|---|
| descarga de modo: | por el cilindro | Característica: | granulador de la oscilación |
| Estándar: | GMP | Tipo: | Tipo horizontal |
| Resaltar: | granulador rápido del mezclador,alto mezclador del laboratorio del esquileo |
||

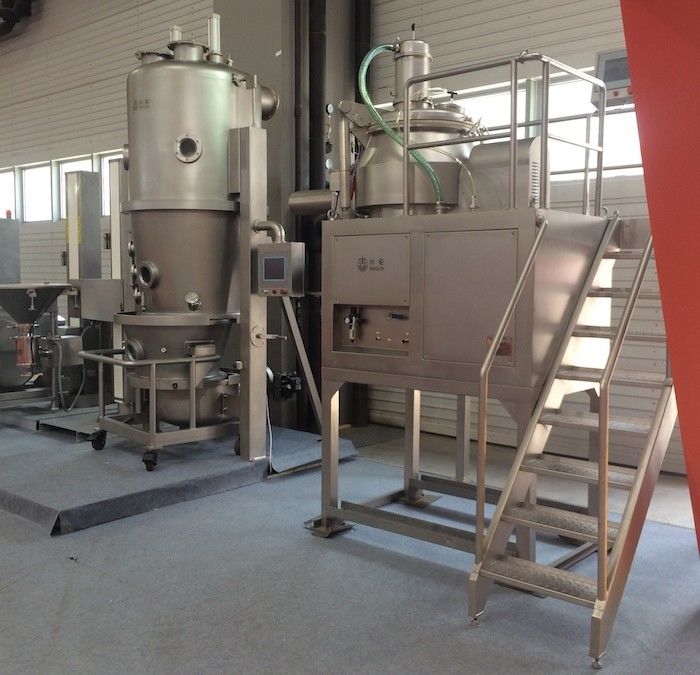

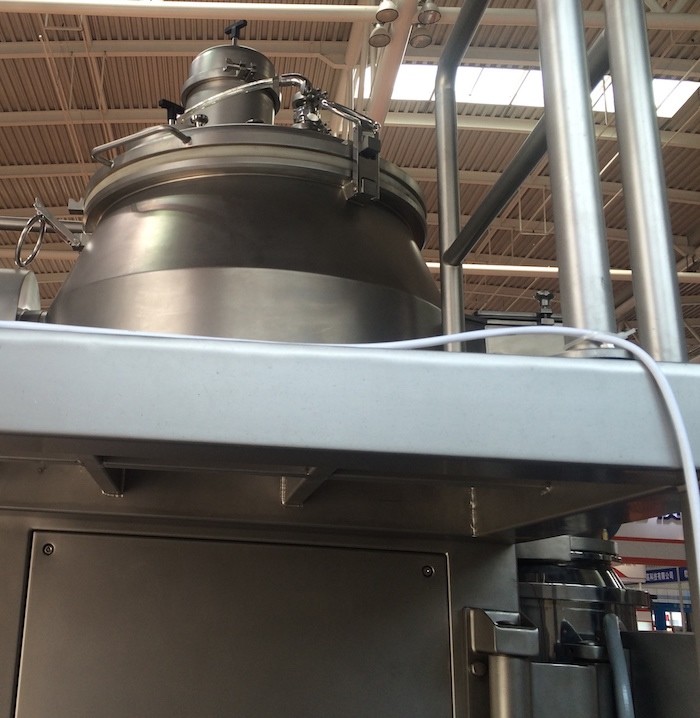

foodstuff High Efficient wet mixing granulator for wet powder
Foodstuff Rapid Mixer Granulator , Wet Granulator Machine For Wet Powder
Description
1. Foodstuff High Efficient wet mixing granulator for wet powder adopts horizontal cylinder structure, its structure reasonable.
2. Air lled seal shaft for to drive. When washing , it can be changed to water.
3. Fluidized Granulation, the granule is around ball shape. Its ow ability is good.
4. Compared to traditional process, 25% of adhesive can be reduced and the drying time is short.
5. The dry mixing time is 2 minutes and the granulating time is 1-4 minutes.
6. Compared to the traditional process , 4-5 times of ef ciency is raised.
7. Dry mixing ,humid mixing and granulating are nished in the same sealed container.
8. The whole operation has strict safe and protective measures.
9. Jacket type might be adopted on request. so it can add the heating or cooling jacket
10. it also can add the vacuum function
Application
foodstuff High Efficient wet mixing granulator for wet powdere is widely used in pharmaceutical, food, chemical and light industries etc., to blend powdery materials and granulate.
The blending and granulating procedures and completed in the same vessel of the machine. Powdery materials in the stationary conic vessel remain in a semi-flowing and rolling state owing to the agitation by a blending paddle and are fully mixed.
Work principle
The granulating process is divided into two procedures of mixing and granulating forming, which are finished in the same vessel. Powder materials in the fixed tapered vessel are hit and dispersed into semi fluid rolling state and given a complete mixture under the stirring action of mixed stock. With the infusion of bond, the powder is gradually moistened and the shape of materials is changed, which has strengthened the extrusion, attrition and kneading functions of the mixing paddle and vessel wall on the materials and thus formed evenly wet soft materials. These soft materials gradually turn into fine and homogeneous wet grains under the high -speed cutting and grain forming of the granulating paddle and eventually discharged through the outlet. The grain size is dependable on the material characteristics, rate of material preparing tool and time of grain forming.
Features
1. The machine adapts horizontal cylinder structure. Its structures is reasonable;
2. Use air filled seal shaft to drive. When washing, it can be changed to water;
3. Use fluidization to Granulate and the granule is like ball. lts flowability is good;
4. Compared with the traditional process,25%) of adhesive can be reduced and the drying time can be shorted;
5. The time of mixing in dry is 2 minutes and the time of granulating is 1-4 minutes. Compared with the traditional process, 4-5 times of efficiency is raised;
6. In the same sealed container, dry mixing, humidity mixing and granulating can be finished, it is in conformity with the requirements of GMP;
7. The whole operation has strict safe and protective measures.
8. The mixing and cutting speed are controlled through frequency change, so the granules are more even.
Technical parameters
| Name | Tpye | ||||||
| 50 | 150 | 200 | 250 | 300 | 400 | 600 | |
| Volume(L) | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
| Output capacity (Kg/batch) | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
|
Mix speed (rpm) |
200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
|
Mix power (Kw) |
4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
|
Shear speed (rpm) |
1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
|
Shear power (Kw) |
1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
|
Compress air consumption (m3/min) |
0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 |
